FRONTIER
THE APEX WORKSTATION
PROCESSOR THREADRIPPER 64 CORES
DUAL LAN ETHERNET PORT
MEMORY UP TO 512GB
CONFIGURE YOUR RIG NOW
Frontier - Custom Build
Supercharged Workflow
Supercharged Workflow
Supermicro Integrated Graphics
AMD Ryzen Threadripper PRO 5965WX | 24 Core 48 Threads | SUPERMICRO (5014A-TT)
32GB DDR4 3200MHz REG ECC RAM (16x2)
960GB Samsung Enterprise NVMe SSD PM9A3 (Gen4)
Supermicro Threadripper Air Cooing
Supermicro WRX 80 Motherboard
From SGD
$8,128
$7,864
You save $264 SGD
DESIGNED FOR HIGH POWER USERS
The FRONTIER is a high-end desktop designed for users that require peak workstation performance. The system is based on SUPERMICRO’s A+ SuperWorkstation 5014A-TT chassis and is designed for AI/DL, digital content creation, and engineering simulations. Built on the AMD WRX80 platform, this PC offers a massive eight-channel memory subsystem with support for up to 2TB of DDR4-3200 SDRAM with or without ECC, as well as 128 usable PCIe 4.0 lanes.

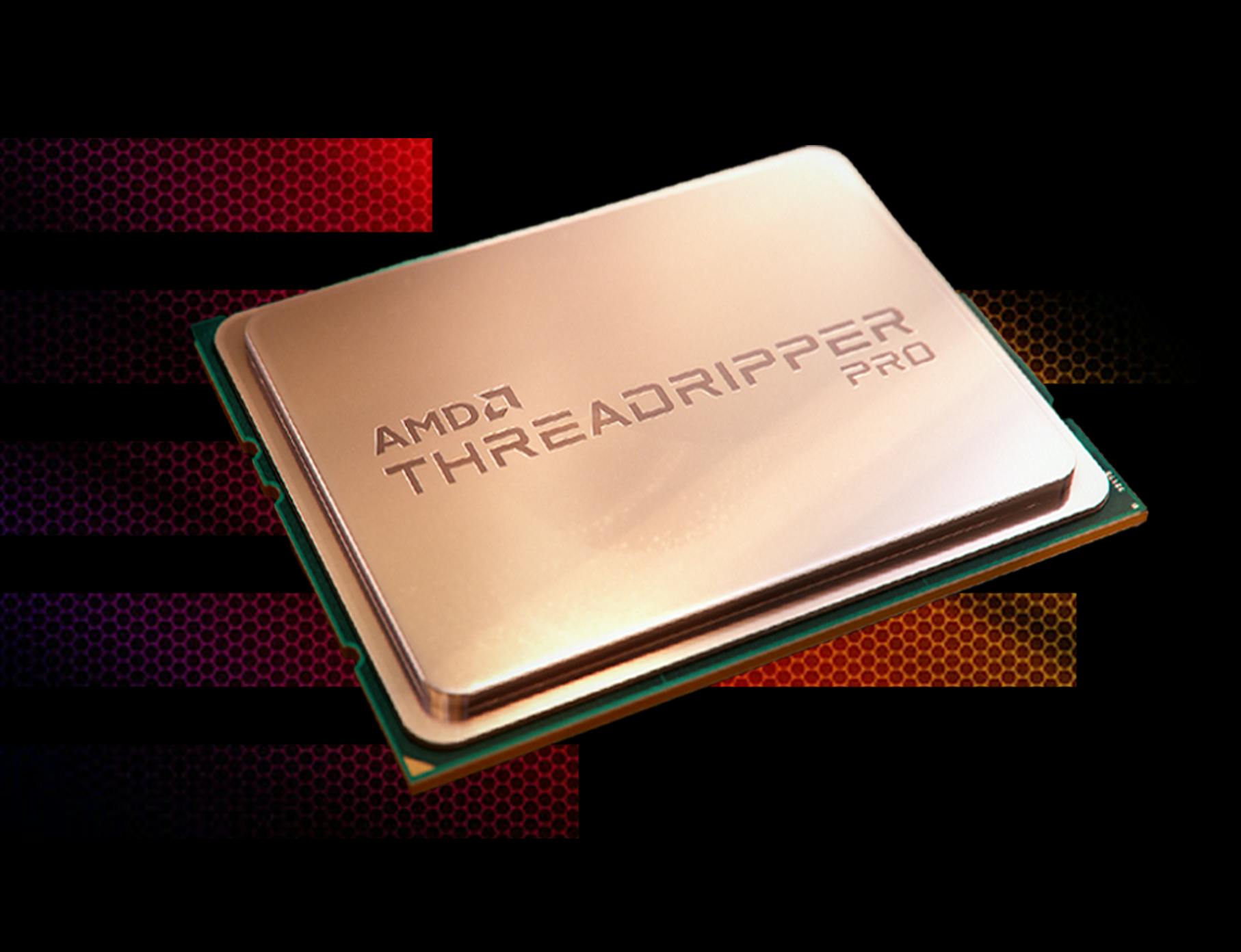

AMD Ryzen™ Threadripper™ Pro
PRO 3000WX Series Processor
The FRONTIER is one of the only workstations capable of supporting the AMD Ryzen Threadripper Pro processor. The chipset's Hyper-Threading support allows two threads to run simultaneously on each core: Windows recognizes 128 total cores, 64 real and 64 virtual. It also supports Turbo Boost technology, which automatically boosts the CPU speed based on workload.

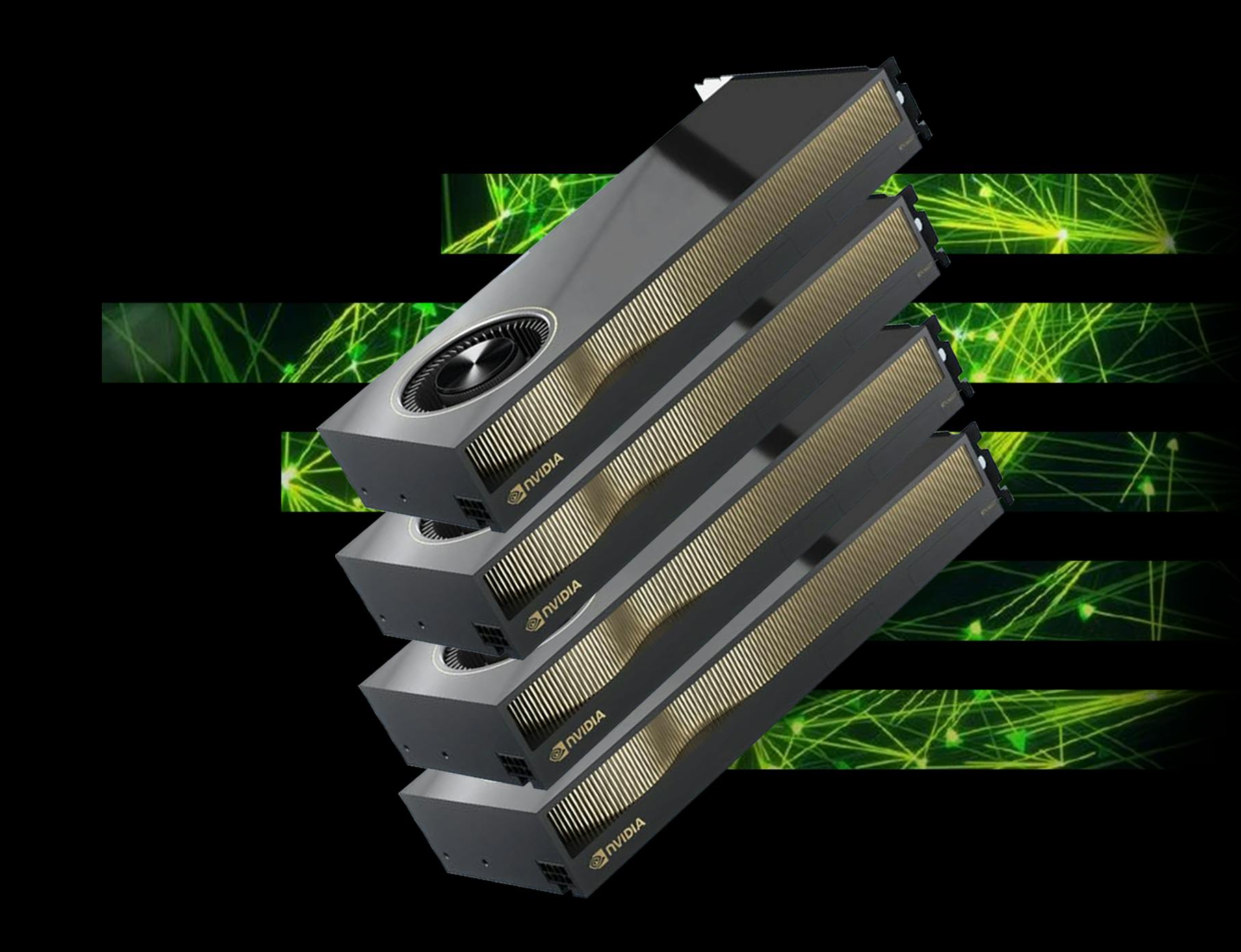

SUPPORTS UP TO 4 GRAPHICS CARDS
Backed by a 2000-watt power supply, the FRONTIER has four PCIe 4.0 x16 slots and offers support for up to four dual-width graphics cards. Configure your system with either an RTX or Quadro® up to the latest RTX A6000 for a platform that will accelerate your visual computing needs.
Windows 11 for Professionals
Designed for the world of hybrid work, Windows 11 can help you work more simply and seamlessly from anywhere. Buy and download Windows 11 for Professionals to enjoy a simple, powerful UX helps improve productivity and focus. New features enable you to make the most of available desktop space. App compatibility and cloud management make adoption easy. A Zero Trust-ready OS helps protect data and access, wherever business takes you.
TECHNICAL SPECIFICATIONS
CPU
AMD PROCESSOR OPTIONS:
AMD ThreadRipper 5965WX
AMD ThreadRipper 5975WX
AMD ThreadRipper 5995WX
AUDIO SYSTEM
7.1 HD Audio with Optical S/PDIF
RAM
8 DIMM Slots
Supports up to 2TB Registered ECC DDR4 3200-MHz SDRAM
8-channel Memory Bus
STORAGE
M.2 Interface: 4 PCI-E 4.0 x4 (Form Factor: 2280, 22110)
SATA: 4x 3.5" or 2x 3.5" & 2x 2.5"
POWER
2000W 80+ Platinum Power Supply
DIMENSIONS
(H) 21.06" (535mm) x (W) 8.74" (222mm) x (D) 22.56" (573mm)
MOTHERBOARD
AMD WRX80
IO PORTS
1x USB 3.2 Gen2x2 Port (Type C, 20Gbps)
5x USB 3.2 Gen2 Ports (4 Type A, 1 Front Intel Type C Header, 10Gbps)
5x USB 3.2 Gen1 Ports (3 Type A, 1 via Header)
2x USB 2.0 via Header
1x RJ45 10GBase-T Ethernet LAN Port
1x RJ45 GbE Ethernet LAN Port (shared with IPMI)
1 COM Port (Rear)
